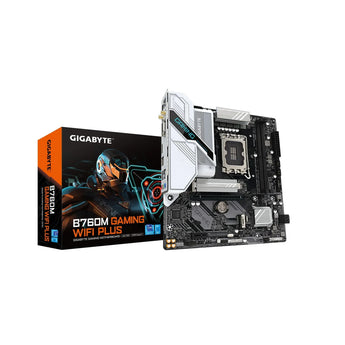

Gigabyte B760M Gaming Plus WIFI DDR5 mATX Motherboard

Original price $249.00 - Original price $249.00
Original price
$249.00
$249.00 - $249.00
Current price $249.00

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

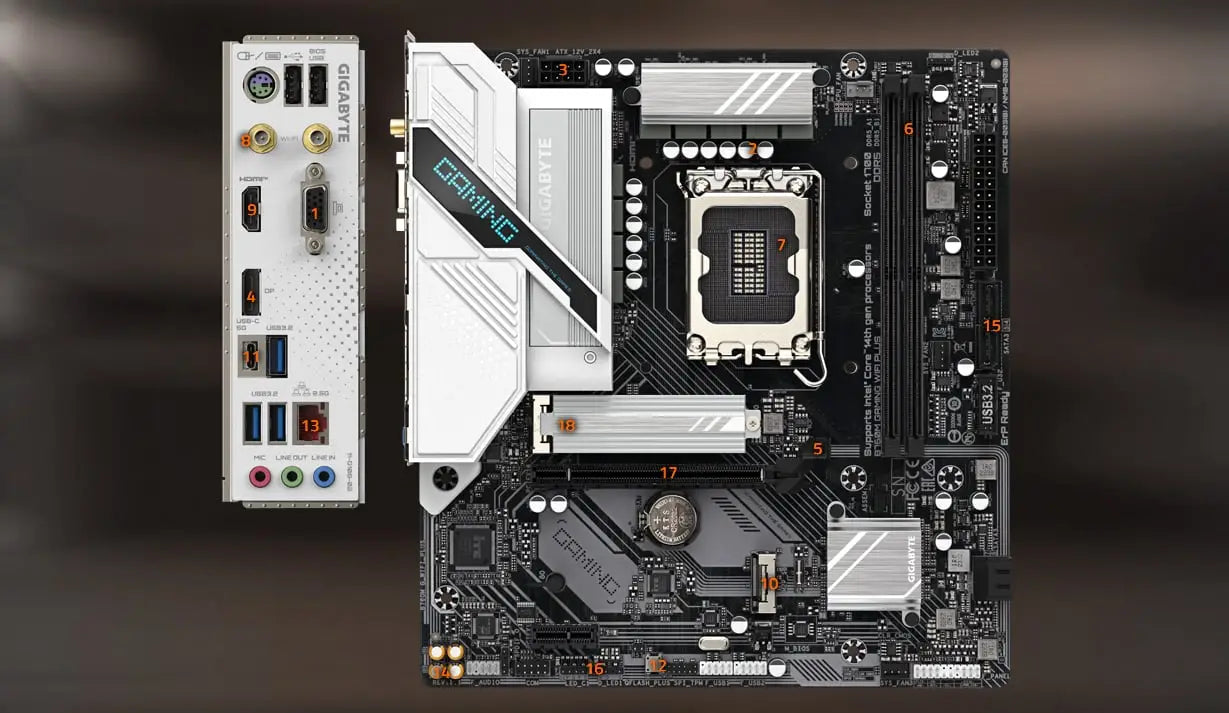

Overview

1 - D-Sub

2 - 6+2+1 Phases Hybrid Digital VRM Design

3 - 8 Solid Pin CPU Power Connector

4 - DisplayPort

5 - PCIe EZ-Latch

6 - Dual Channel SMD DDR5 Memory

7 - Support 14th/13th/12th Gen Intel® Core™ Processors

8 - Wi-Fi 802.11ac & BT

9 - HDMI

10 - PCI Express 4.0 Design
1*PCIe 4.0 x16 Slot
2*PCIe 4.0 x4 M.2 Connectors

11 - USB 3.2 Gen 1 Type-C®

12 - Q-FLASH Plus Onboard Button

13 - 2.5GbE LAN

14 - Audio Solution
8-ch HD Audio
Audio Noise Guard
High-End Audio Capacitors

15 - 4*SATA 6Gb/s

16 - RGB FUSION
2*Addressable LED Headers
1*RGB LED Header

17 - PCI Express 4.0 Design
1*PCIe 4.0 x16 Slot
2*PCIe 4.0 x4 M.2 Connectors

18 - PCI Express 4.0 Design
1*PCIe 4.0 x16 Slot
2*PCIe 4.0 x4 M.2 Connectors






Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide prime performance and a timeless platform.

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

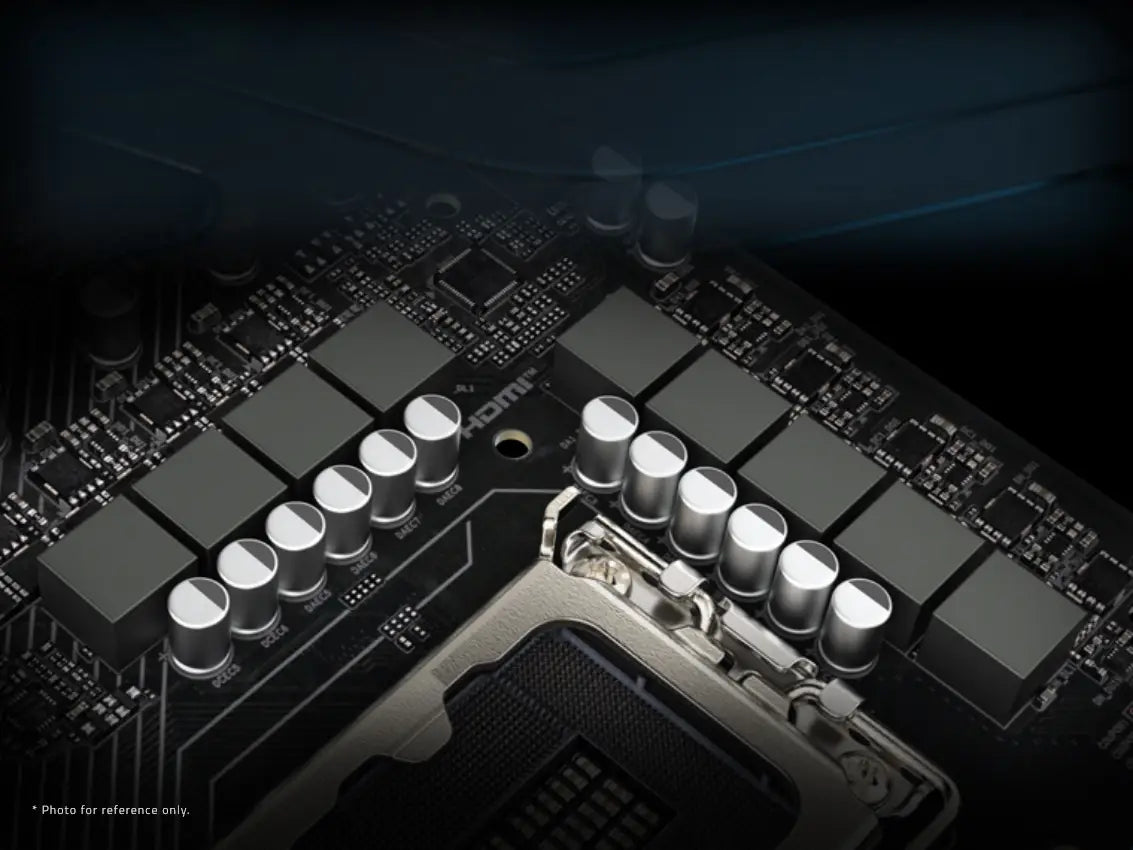

Digital VRM Design

The best VRM design ever built with the highest quality components.

- 6+2+1 Phases digital PWM + Low RDS(on) MOSFETs
- Support the latest CPUs and deliver enhanced system performance and ultimate hardware scalability.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

Unlock DDR5

DDR5 Overclocking Up to 8000 and Beyond* - GIGABYTE offers a tested and proven platform with an extreme memory performance boost.

* Memory overlocking and XMP profile support may vary depending on hardware configuration.
* Please see the complete validated memory support list. Product features may vary by model.

Shielded Memory Routing - All memory routing is under the PCB inner layer, which is shielded by a large ground layer to protect it from external interference.

Impedance-Optimised Topology—By optimising memory trace width, length, and style from HPC simulation to actual implementation, the overall impedance between the CPU memory controller and memory modules is lowered to achieve higher DDR5 speed.

Low Signal Loss PCB - Server-grade mid-loss or low-loss PCB material is chosen to lower signal loss inside the PCB and maintain DDR5's high-speed signal transmission.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

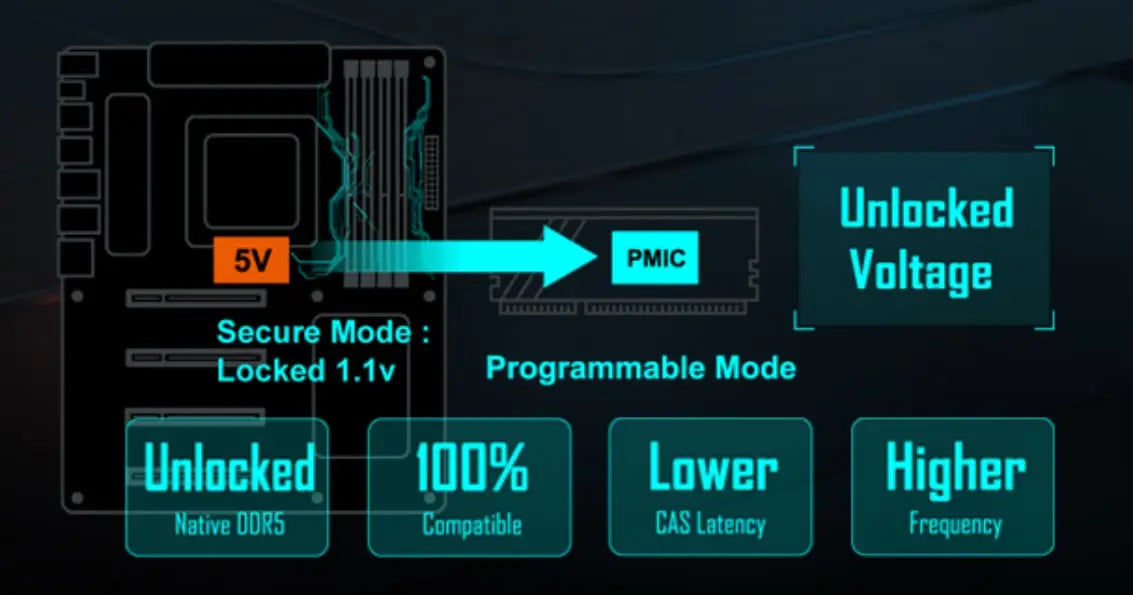

Unlock DDR5 Voltage

GIGABYTE's Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming the Native DDR5 memory module into Overclocked DDR5 memory.

Secure Mode - Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

- Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with a wide range.
- Supports all PMIC vendors for maximum compatibility

* Memory overclocking capability will vary based on the user's hardware configuration.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

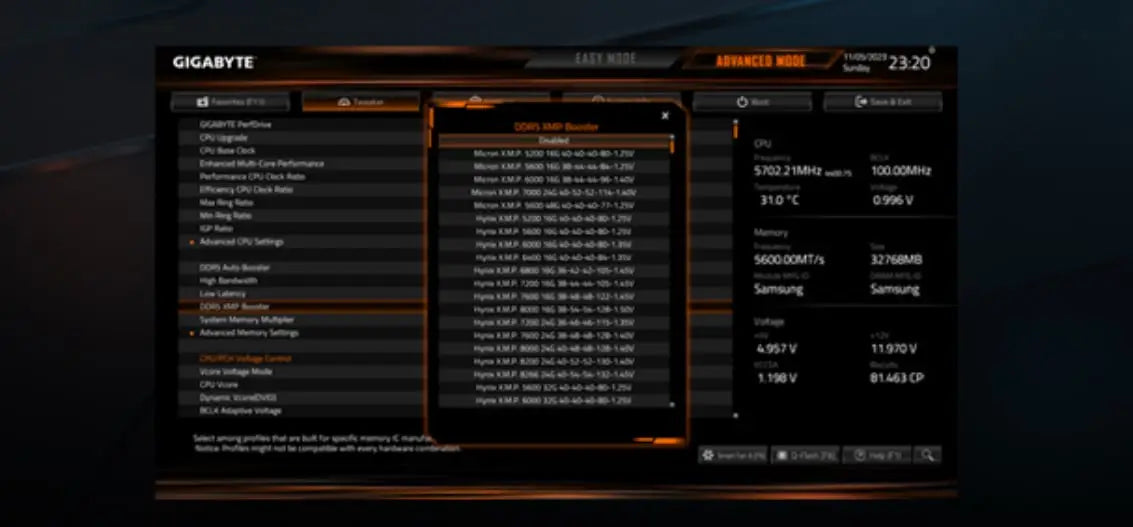

Achieve Higher DDR5 Memory Frequencies with Ease

The DDR5 XMP Booster function provides optimised pre-defined profiles based on memory IC and PMIC vendor analysis for effortless performance enhancement and eliminates manual configuration for overclocked DDR5 memory kits.

* DDR5 MEMORY UPGRADE involves DDR5 memory overclocking; the overclocking capability depends on the user's hardware configuration.

Accelerate instantly - Boost memory performance instantly.

Automate input - No need to manually configure multiple memory parameters like clock, voltage, and timings.

Streamline overclocking - Overclock Native and XMP 3.0 DDR5 memory to higher frequencies.

Integrate database - Built-in database of pre-tuned profiles for different memory IC vendors.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

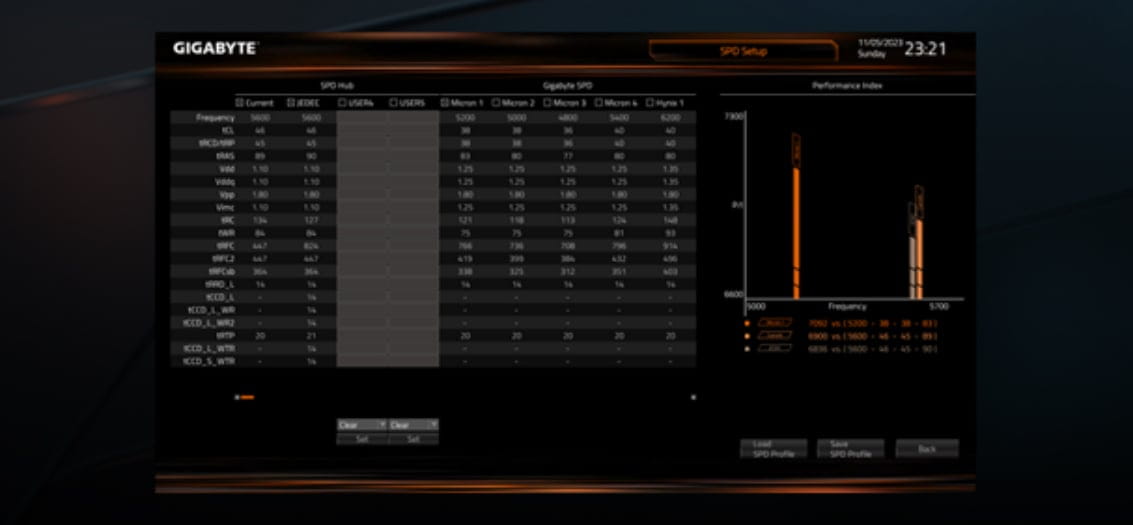

Maximise DDR5 performance with your memory settings

XMP 3.0 User Profile empowers you to optimise your memory settings and achieve the best performance for your system.

SPD Re-defined or retrieve from database - Users can define two empty SPD profiles and transfer them to another computer.

Performance Simulation - Simulate memory performance quickly by inputting clock and timing parameters.

Save/Load Profile - Save and load memory profiles for online sharing.

Boost non-overclockable DDR5 memory frequency - Increase the frequency of non-overclockable DDR5 memory.

One-click Clear Profile - Reset memory settings conveniently.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

Thermal - Enlarged MOSFET Heatsink

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

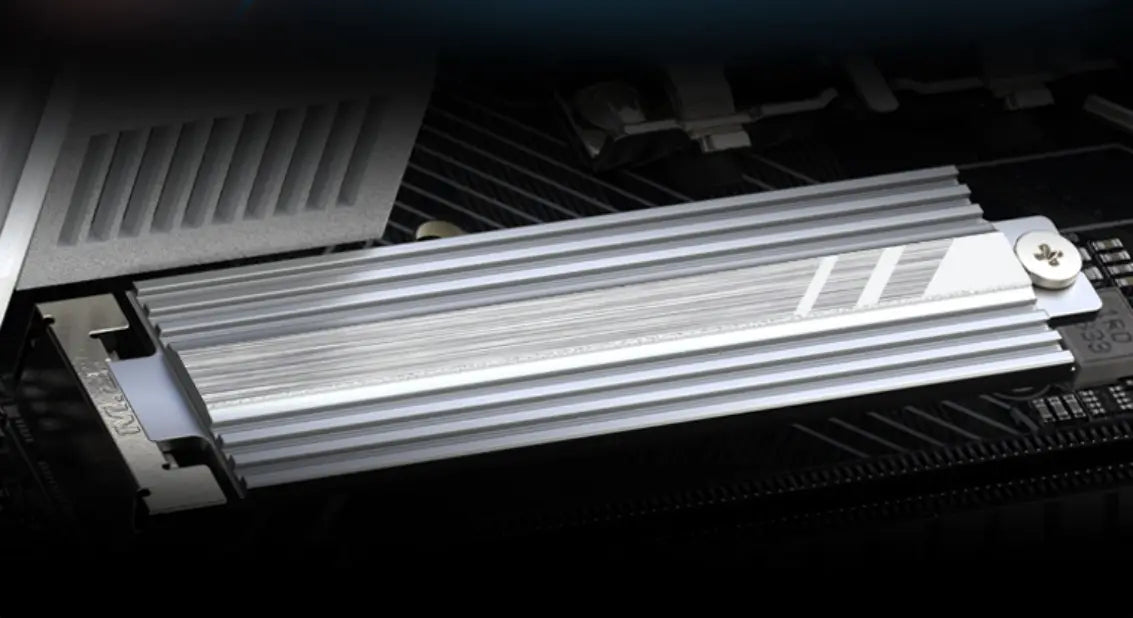

M.2 Thermal Guard

The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs by helping to dissipate heat before it becomes an issue.






Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next-generation network and storage.

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

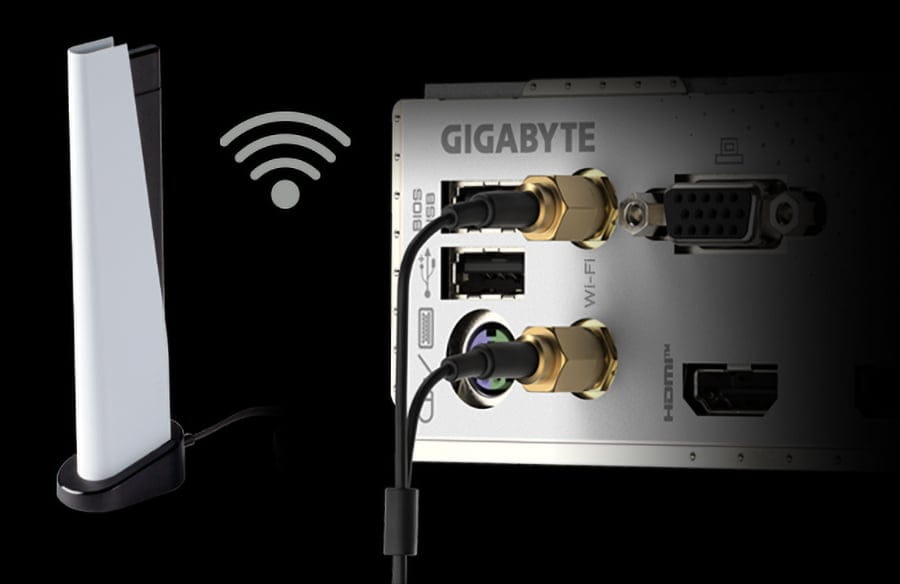

802.11ac Wi-Fi

The onboard 802.11ac Wi-Fi module supports dual bands and up to 1.73Gbps, is 5x faster than 802.11n, and supports BLUETOOTH 4.2 and above.

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

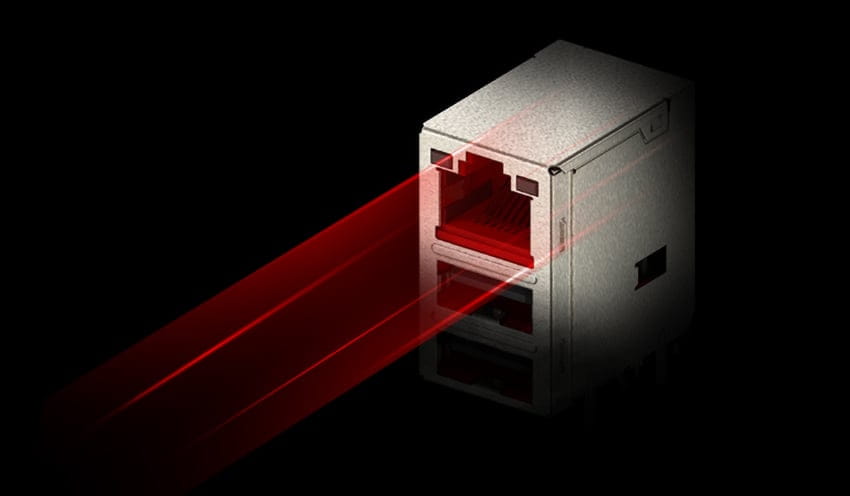

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN. Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

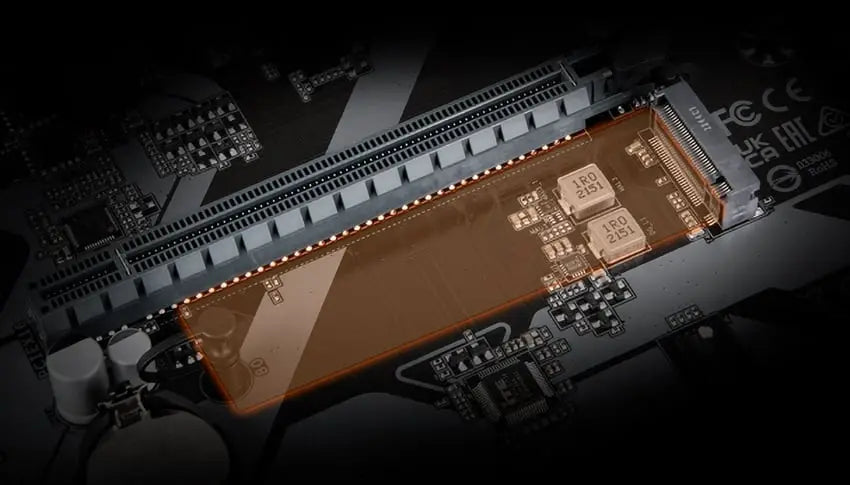

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slots and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide superior performance.

* The picture is for reference and may vary by mode.

Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

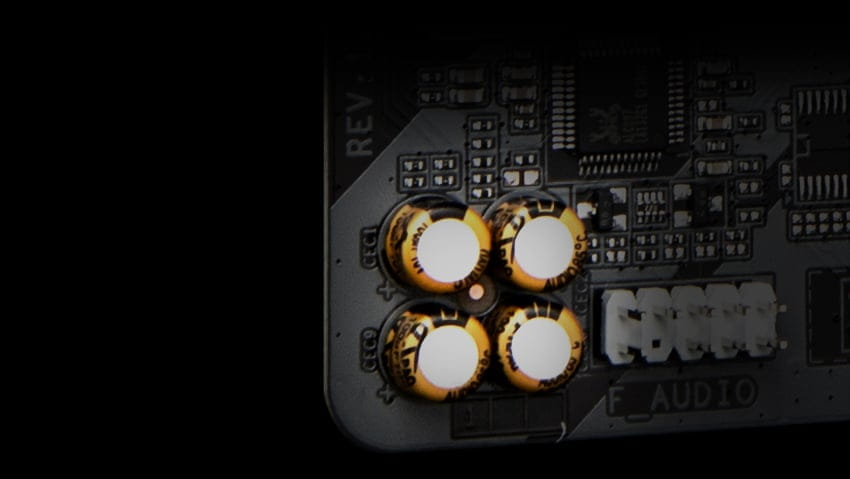

Hi-Fi Audio

High-End Audio Capacitors—These high-quality capacitors help deliver high-resolution and high-fidelity audio, providing the most realistic sound effects.

Audio Noise Guard—This feature effectively separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

* Photo for reference only.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

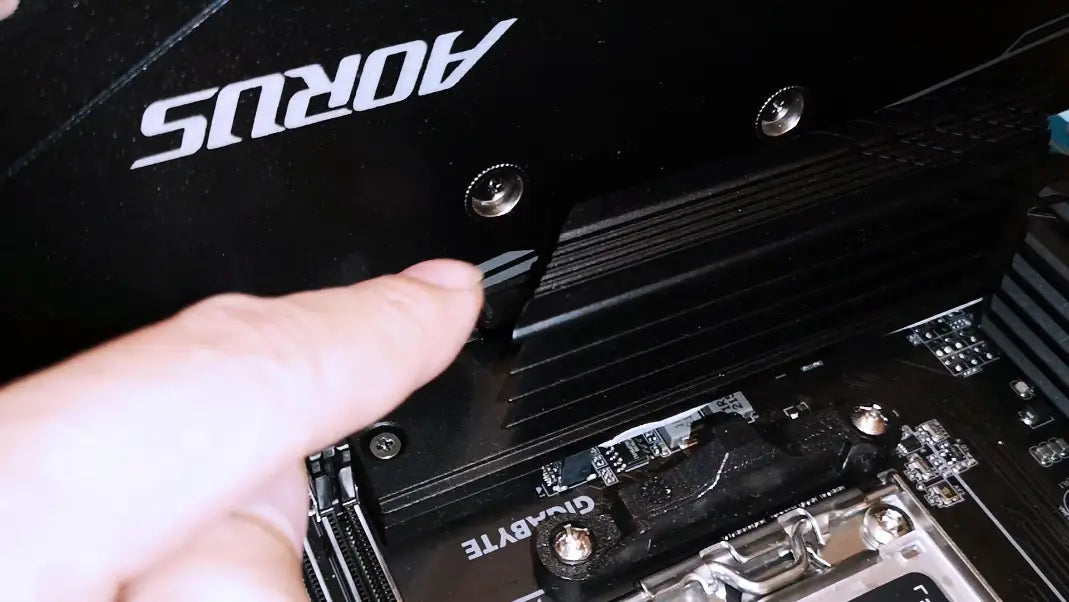

EZ-Latch

Unlock the latch of the PCIe slot easily when removing the graphics card in the PCIe slot.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

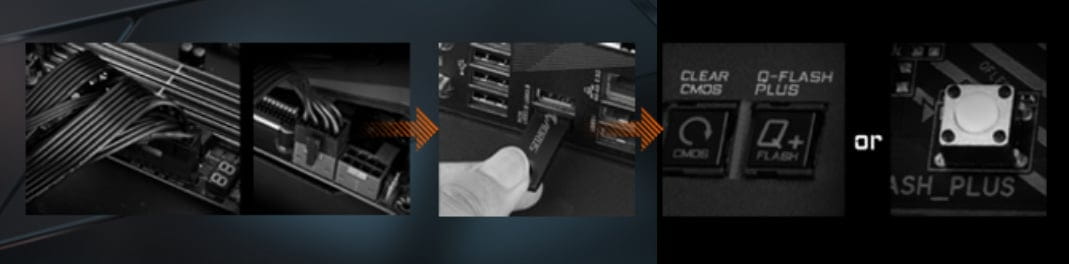

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

STEP 1: Plug the 24-pin and 8-pin power supply cables into the motherboard.
STEP 2: Download the motherboard BIOS file and rename it "gigabyte.bin". Please save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
STEP 3: Press the Q-FLASH PLUS button, and the motherboard will automatically update the BIOS.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

Smart Fan 6

Ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customisable settings, and intuitive temperature monitoring.

- High Current Support: Each fan header supports PWM and DC fans, a Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection.

- Precision Control: Multiple temperature/fan speed control points for precise fan curves.

- Dual Curve Mode: Slope/Stair dual mode for different user scenarios.

- Fan Stop: The fan can stop entirely below the user's specified temperature point.

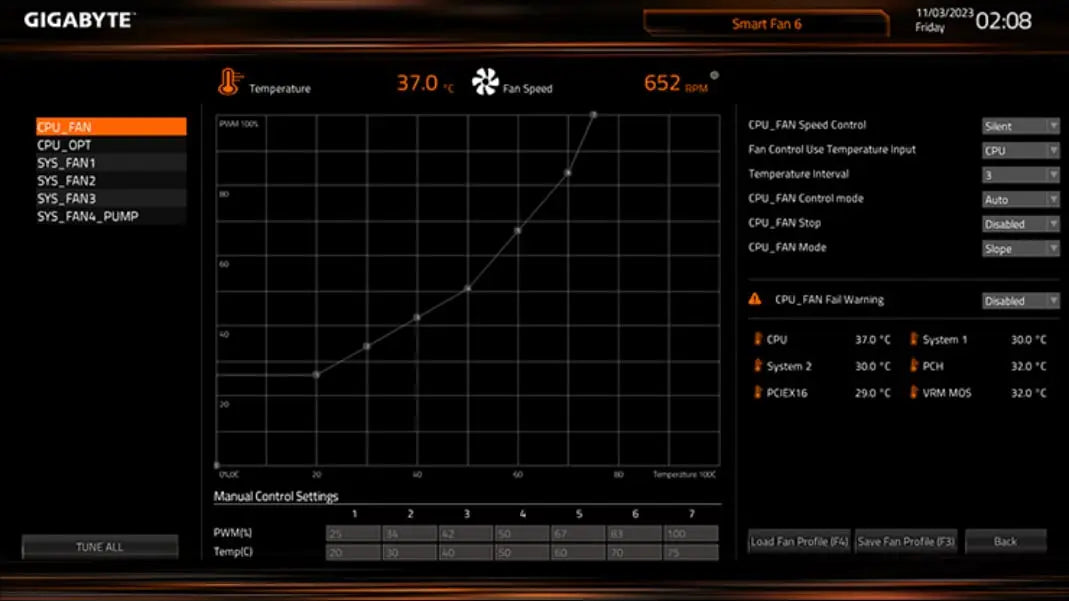

Smart Fan 6 BIOS UI

1. Enhance Fan Curve UI: Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.

2. Slope/Stair Dual Graph Mode: Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.

3. Manual Input: For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.

4. EZ Tuning: With EZ Tuning, you can simplify the process by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.

5. Fan Curve Profile: Save your customised fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Note: The picture is for reference and may vary by model.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

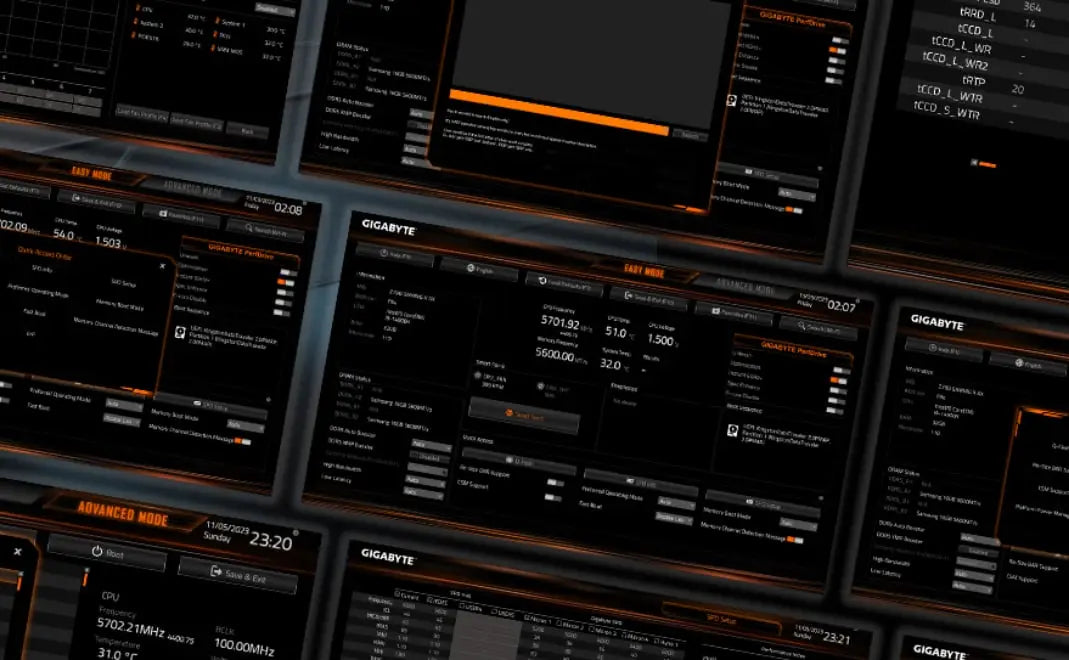

UC BIOS

Redesigned UI and UX - an intuitive operation interface with an aesthetically pleasing design.

Quick Access - 9 customisable option slots for effortless access in Easy Mode.

PerfDrive - exclusive BIOS settings that optimise the performance based on the cooling configuration






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard

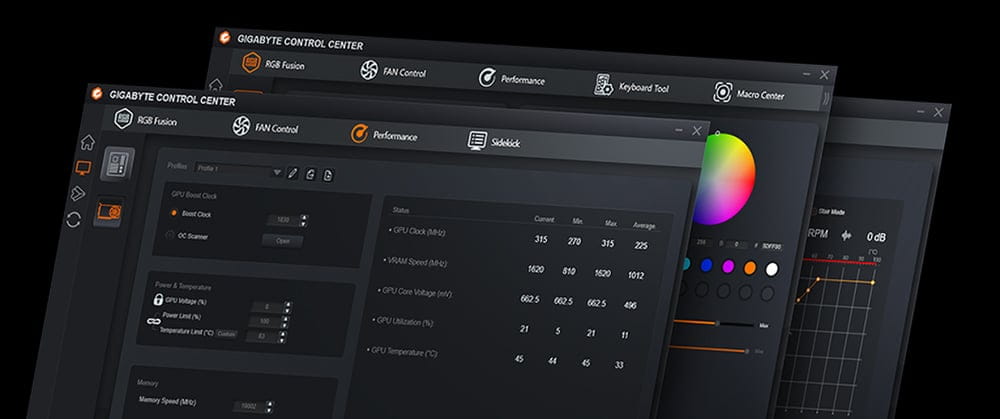

GIGABYTE Control Center

Unified software platform for all Gigabyte-supported products.

- Intuitive user interface

- Modularised control.

- Auto update.






Gigabyte B760M GAMING WIFI PLUS LGA1700 Micro-ATX Motherboard
