ASRock

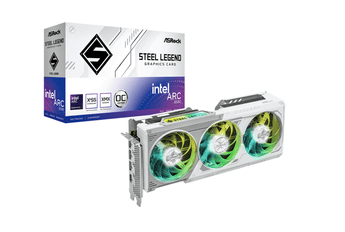

ASRock Intel Arc B580 Steel Legend 12GB OC GDDR6 Graphics Card

$649.00
Tax included. Shipping calculated at checkout.

Pickup available at GODMODE

Usually ready in 24 hours

Intel Arc B580 Steel Legend 12GB OC

Clock: GPU / Memory
- GPU Clock: 2800 MHz
- Memory Clock: 19 Gbps

Key Specification
- Intel® Arc™ B580 Graphics
- 12GB 192-bit GDDR6
- Intel® Xe2-HPG Architecture
- Intel® Xe Super Sampling 2 (Intel® XeSS 2)
- Intel® Xe Matrix eXtentions (Intel® XMX)
- Microsoft® DirectX® 12 Ultimate
- 2x 8-pin Power Connectors
- 3x DisplayPort™ 2.1, 1x HDMI™ 2.1a

Key Features
- Polychrome SYNC
- Triple Fan Design
- Striped Ring Fan
- Stylish Metal Backplate
- Ultra-fit Heatpipe
- Air Deflecting Fin
- 0dB Silent Cooling
- Super Alloy Graphics Card

Polychrome SYNC - Create your own unique colorful light effects.

With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

SPECIFICATIONS

Graphics Engine

Intel® Arc™ B580 Graphics

Bus Standard

PCI® Express4.0 x8

DirectX

12 Ultimate

OpenGL

4.6

Memory

12GB GDDR6

Engine Clock

2800 MHz

Intel® XMX Engines

160

Memory Clock

19 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution: 7680 x 4320

Interface

1 x DisplayPort 2.1 (Primary, up to UHBR13.5)
2 x DisplayPort 2.1 (Up to UHBR10)
1 x HDMI 2.1a

HDCP

Yes

Multi-view

4

Recommended PSU

650W

Power Connector

2x 8-pin

Accessories

1x Quick Installation Guide

Dimensions

298 x 131 x 51 mm, 2.6-slot

Net Weight

959 g
