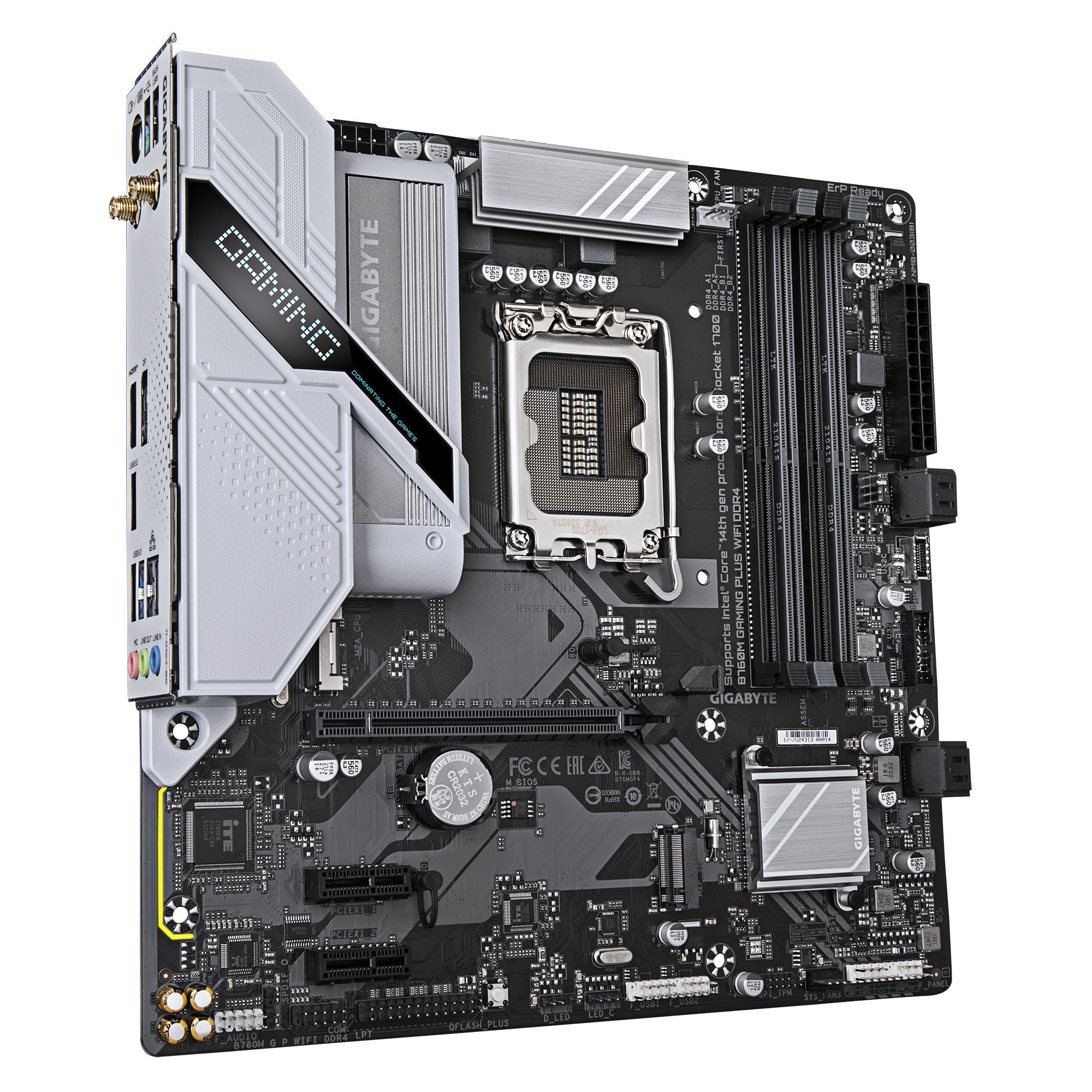

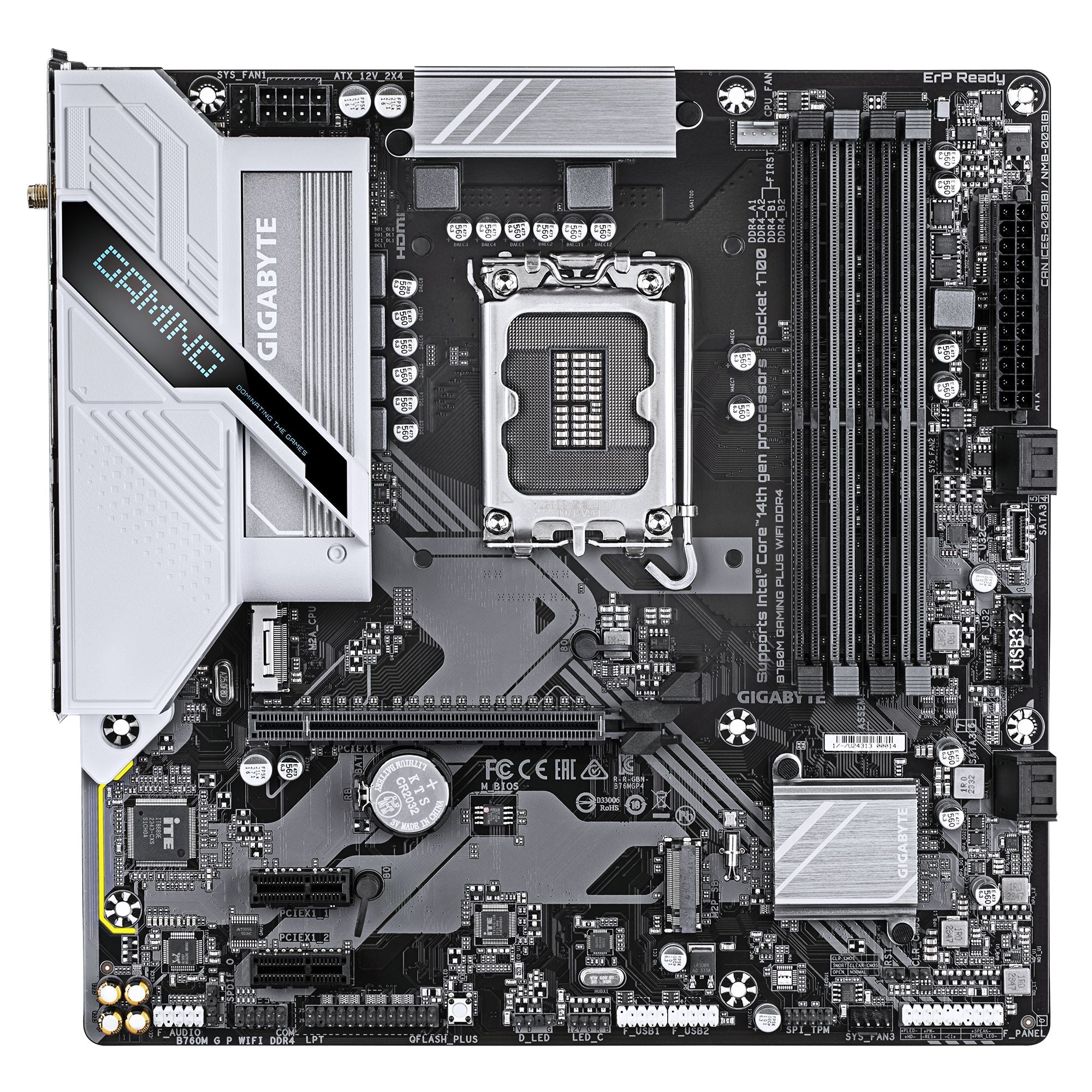

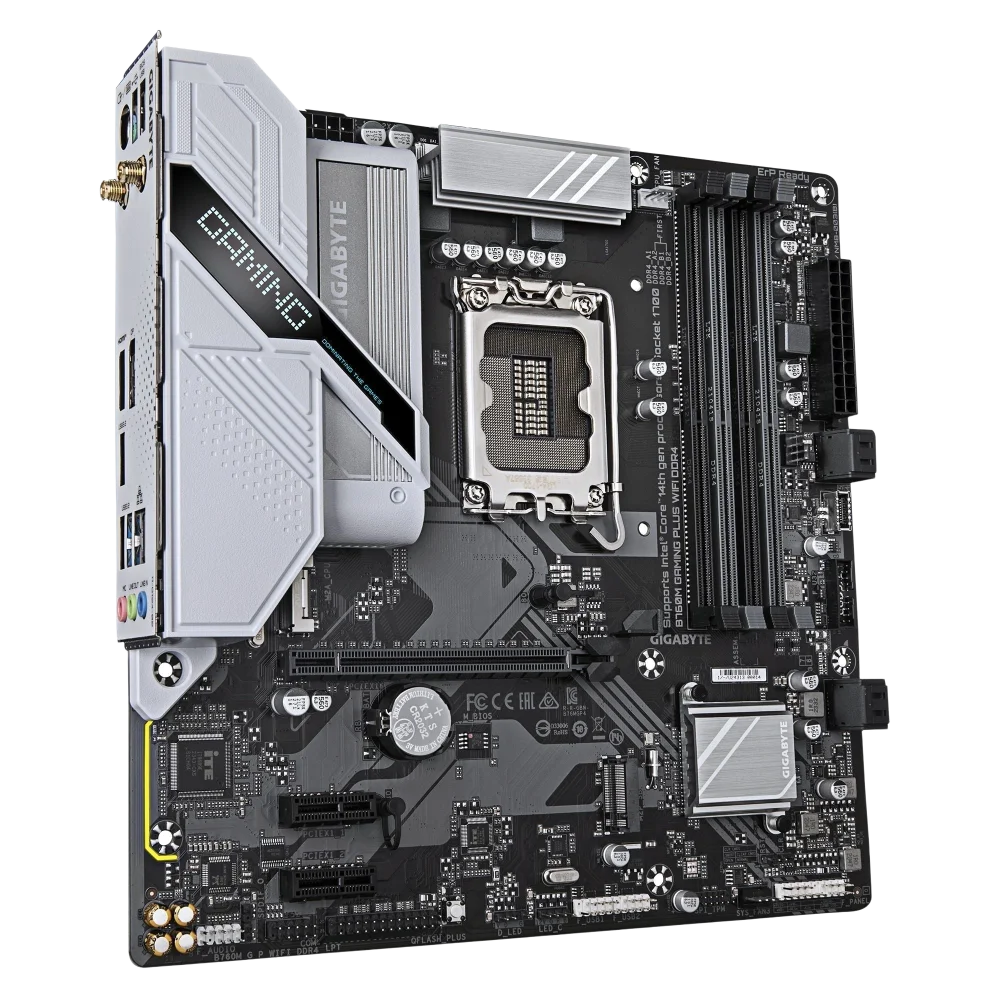

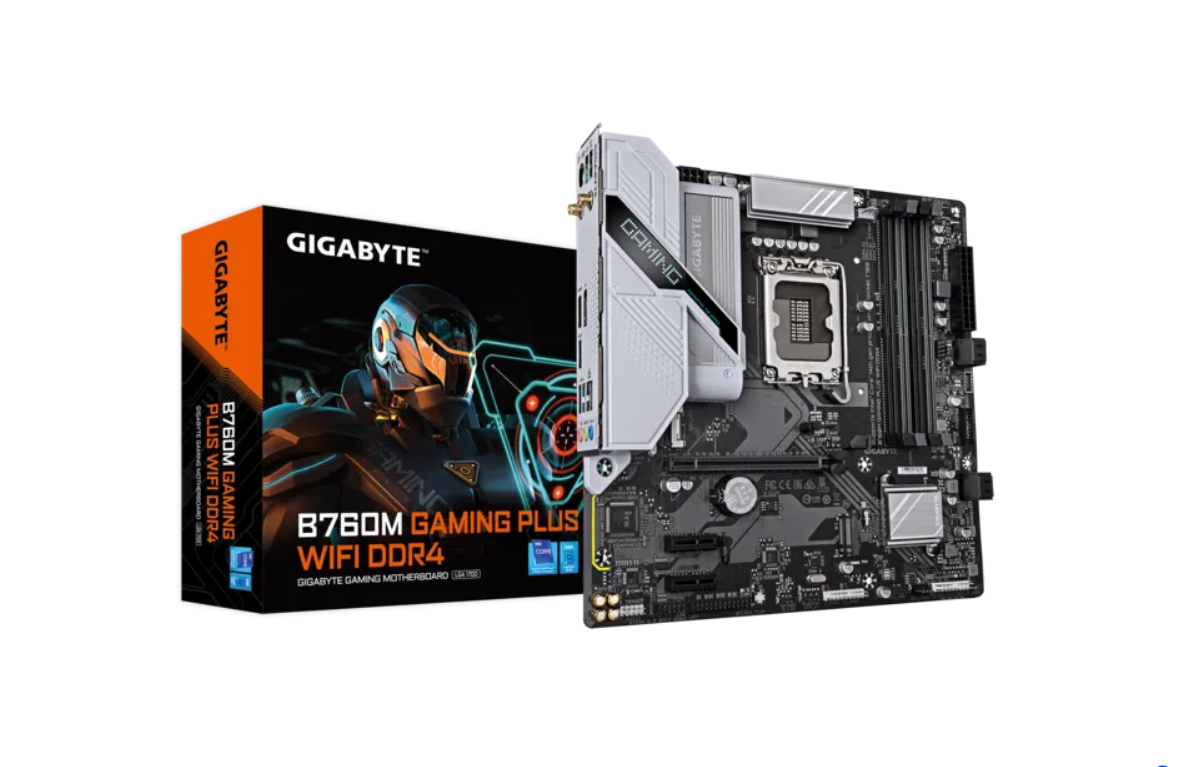

Gigabyte B760M Gaming Plus WIFI DDR4 mATX Motherboard

Save $11.45 Save $11.45
Original price $229.00
Original price $229.00 - Original price $229.00
Original price $229.00
Current price $217.55
$217.55 - $217.55
Current price $217.55

B760M GAMING PLUS WIFI DDR4

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
  • Dual Channel DDR4:4*DIMMs XMP Memory Module Support
  • Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
  • Fast Networks:Wi-Fi 6 802.11ax, GbE LAN
  • Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI
  • Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

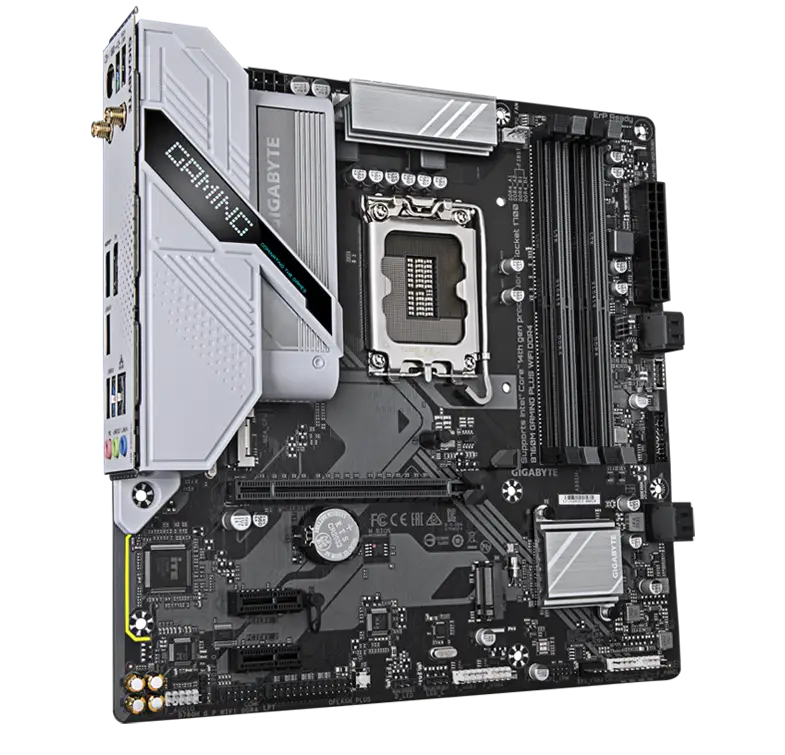

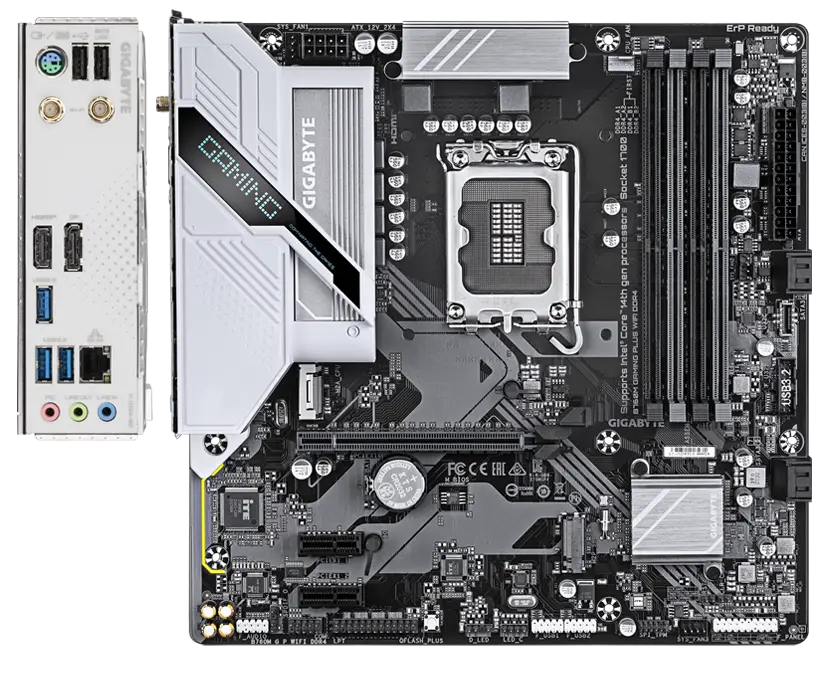

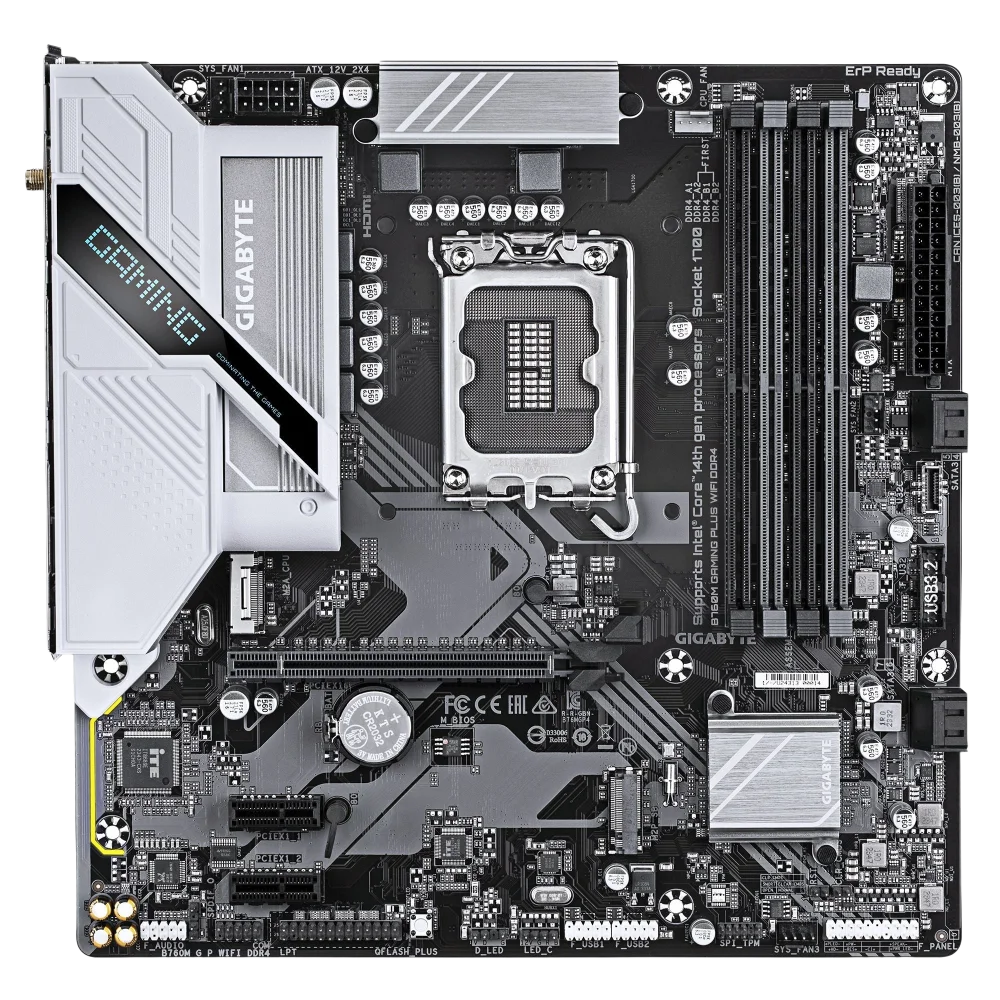

OVERVIEW

  • 8 Solid Pin CPU Power Connector

  • 2 x M.2 Ultra Storage Performance Connectors

    • 2*PCIe 4.0 x4 M.2
  • Audio Solution

    • 8-ch HD Audio
    • Audio Noise Guard
    • High-End Audio Capacitors
  • PCIe EZ-Latch

  • Dual Channel DDR4, 4 DIMMs

  • Support 14th/13th/12th Gen.
    Intel® Core™ Processors

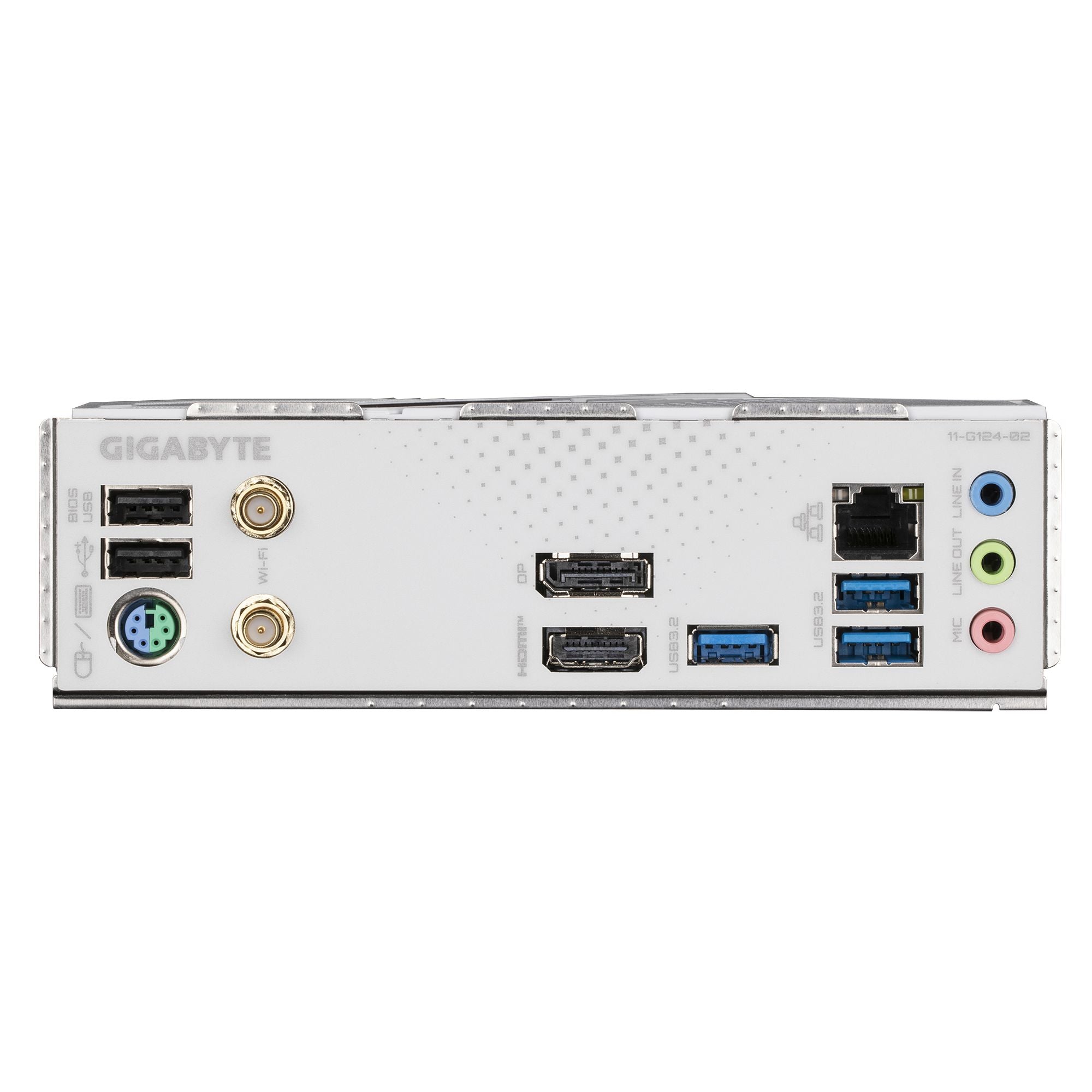

  • Front USB 3.2 Gen1 Type-C

  • 802.11ax Wi-Fi

  • HDMI

  • 1*DisplayPort

  • RGB FUSION

    • 1*Addressable LED Header
    • 1*RGB LED Header
  • GbE LAN

  • Q-FLASH Plus Onboard Button

  • 4*SATA 3

  • 4+1+1 Hybrid Digital VRM Design

    • PCIe 4.0 Ready PCB
    • Premium Choke and Capacitor
  • Full PCIe 4.0 Design

    • 1*PCIe 4.0 x16 slot
    • 2*PCIe 4.0 x4 M.2 Connectors

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

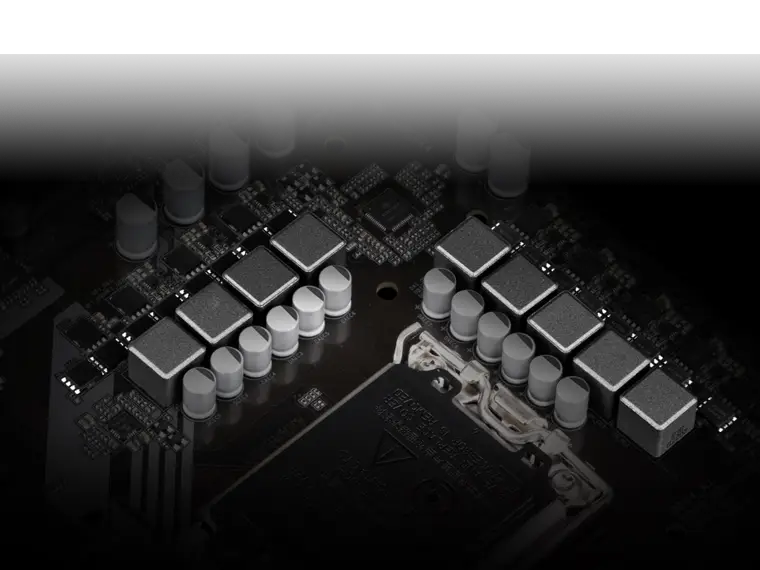

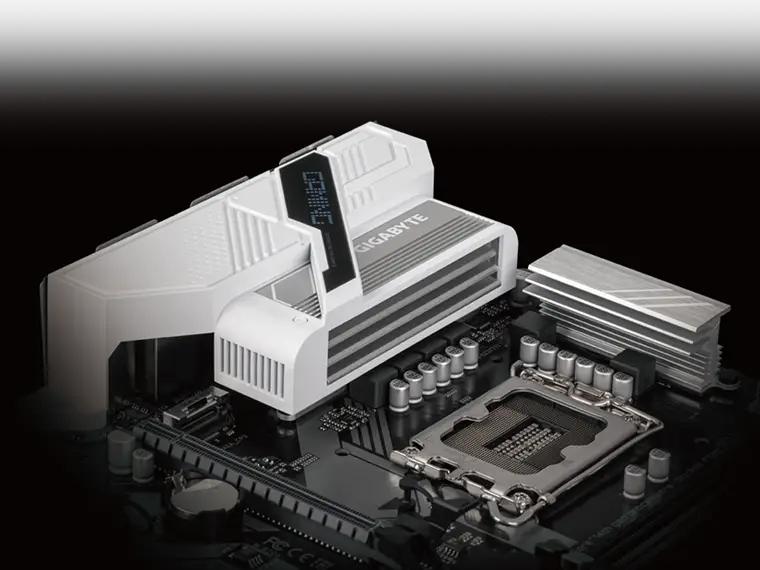

Digital VRM Design

The best VRM design ever built with the highest quality components.

• 4+1+1 Phases digital PWM + Low RDS(on) MOSFETs
• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.DDR4 XMPSupport for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.** XMP Profile support may vary depending on memory module.
Please see the complete validated memory support list. Product features may vary by model.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

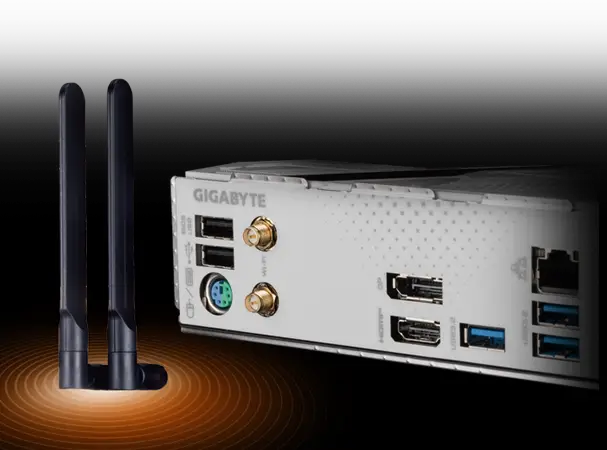

802.11ax Wi-Fi

The Wireless solution 802.11ax Wi-Fi enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

GbE LAN

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

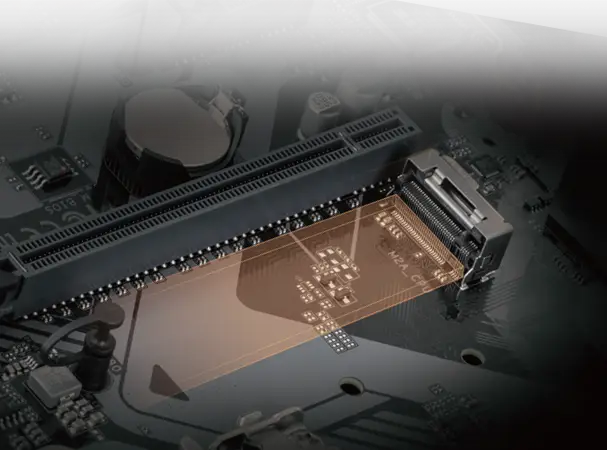

PCIe 4.0 Hardware Design

Featuring one or multiple PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.

* The picture is for reference and may vary by mode.

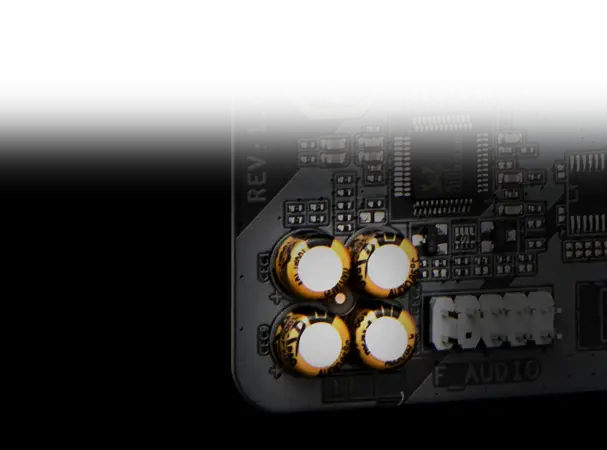

Hi-Fi Audio

* Photo for reference only.

EZ-Latch

Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

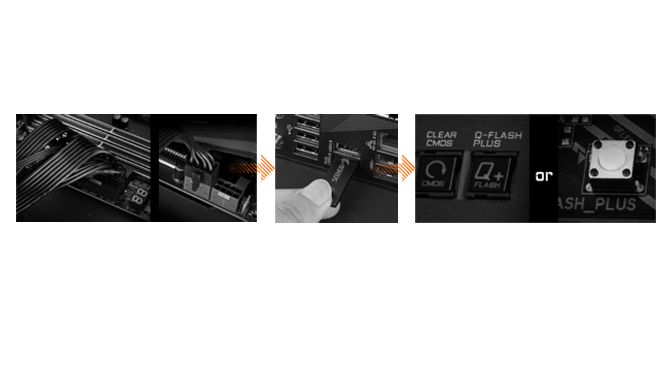

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card.

  • STEP 1: Plug the 24-pin and 8-pin power supply cables into the motherboard.
  • STEP 2: Download the motherboard BIOS file and rename it to "gigabyte.bin". Save it to a USB flash drive formatted in FAT32. Insert the USB flash drive into the Q-FLASH PLUS USB port.
  • STEP 3: Press the Q-FLASH PLUS button, and the motherboard will start updating the BIOS automatically.

Smart Fan 6

ensures optimal cooling and quiet operation for your gaming PC, with support for PWM/DC fans and pumps, customizable settings, and intuitive temperature monitoring.

  • High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection.
  • Precision Control: Multiple temperature/fan speed control points for precise fan curve.
  • Dual Curve Mode: Slope/Stair dual mode for different user scenario.
  • Fan Stop: Fan can stop completely below users' specified temperature point.

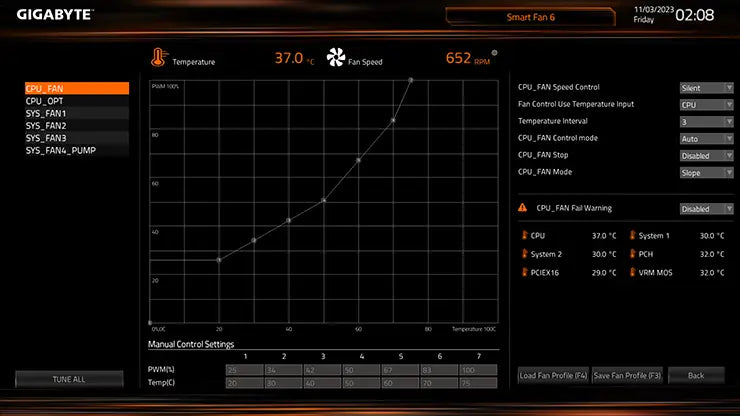

Smart Fan 6 BIOS UI

  1. Enhance Fan Curve UI : Enhance fan curve control with an expanded number of control points, from 5 to 7, and a larger fan speed graph, enabling users to have more precise and effortless control over fan curve settings.
  2. Slope/Stair Dual Graph Mode : Switch between Slope and Stair modes to adapt to various user scenarios. Slope mode provides a linear fan speed curve, while Stair mode maintains a constant fan speed within specified temperature intervals.
  3. Manual Input : For advanced users, manual input of fan speeds is available for fine-tuning and precise control over the cooling system.
  4. EZ Tuning : Simplify the process with EZ Tuning by setting 4 points on a rough temperature/fan speed scale. Smart Fan 6 will quickly generate a fan curve based on these points.
  5. Fan Curve Profile : Save your customized fan curve profile in the BIOS ROM, ensuring it remains intact even after BIOS updates.

Note: The picture is for reference and may vary by model.

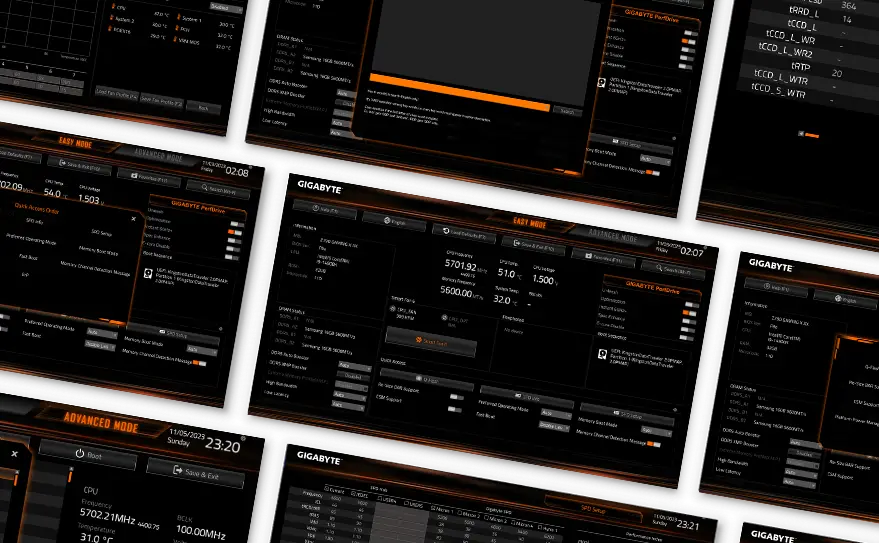

UC BIOS

Redesigned UI and UX
an intuitive operation interface with an aesthetically pleasing design.

Quick Access
9 customizable option slots for effortless access in Easy Mode.

PerfDrive
exclusive BIOS settings that optimize the performance based on the cooling configuration

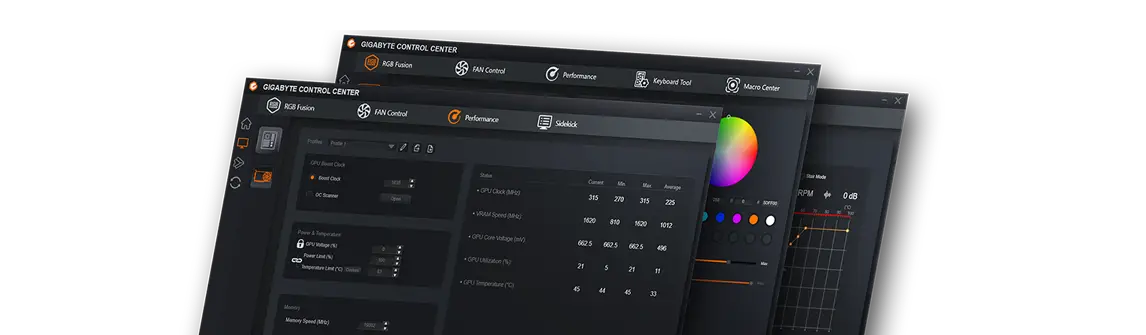

GIGABYTE Control Center

Unified software platform for all Gigabyte supported products.

  • - Intuitive user interface
  • - Modularized control
  • - Auto update
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
